Description

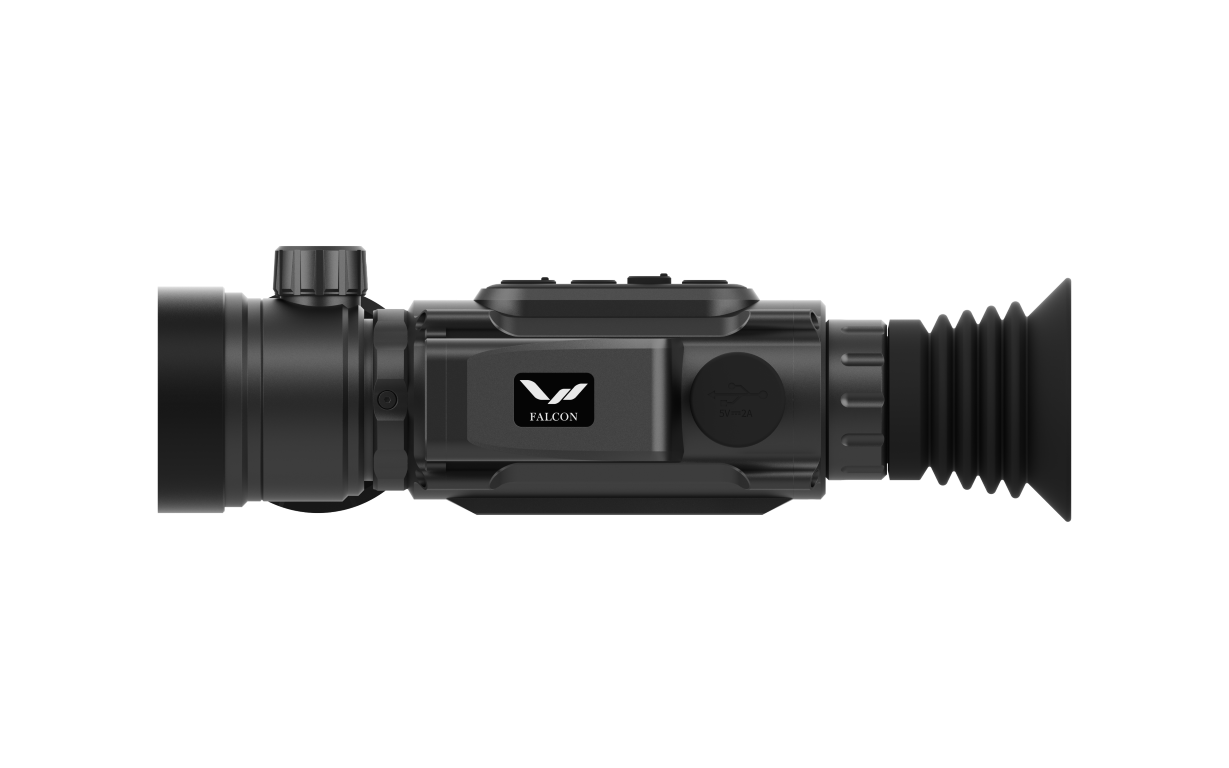

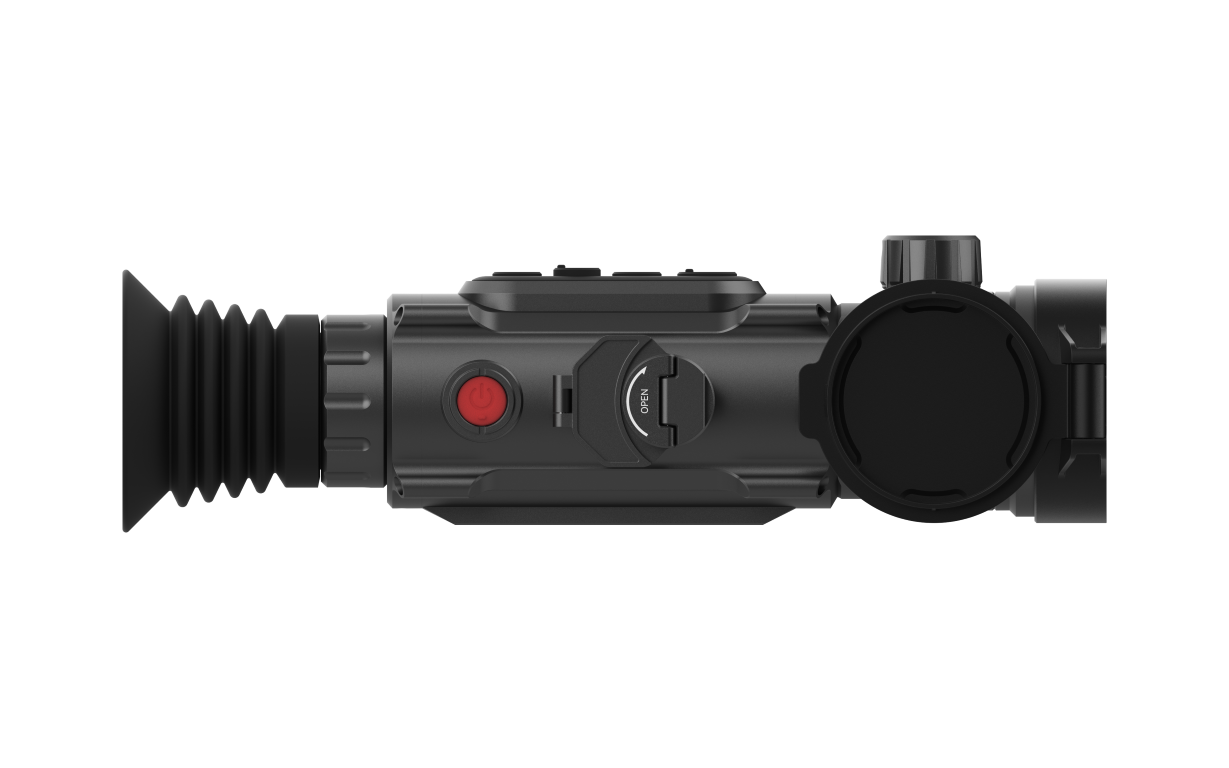

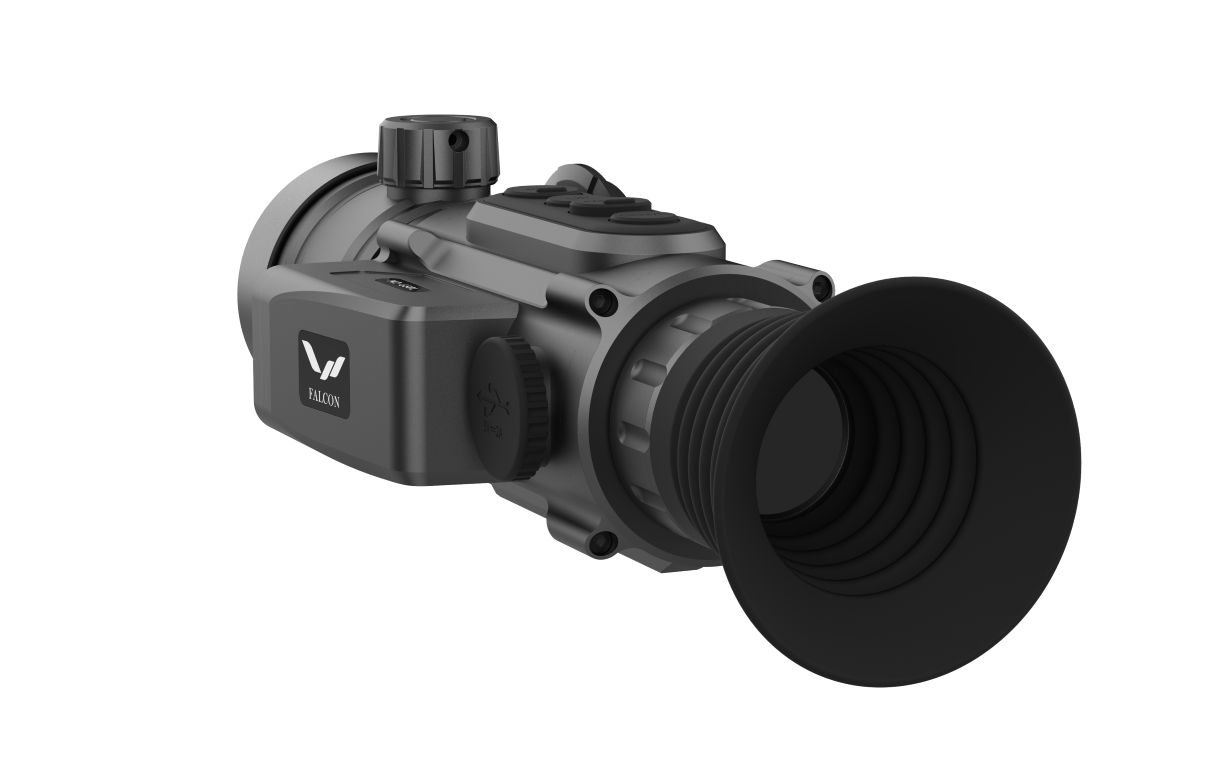

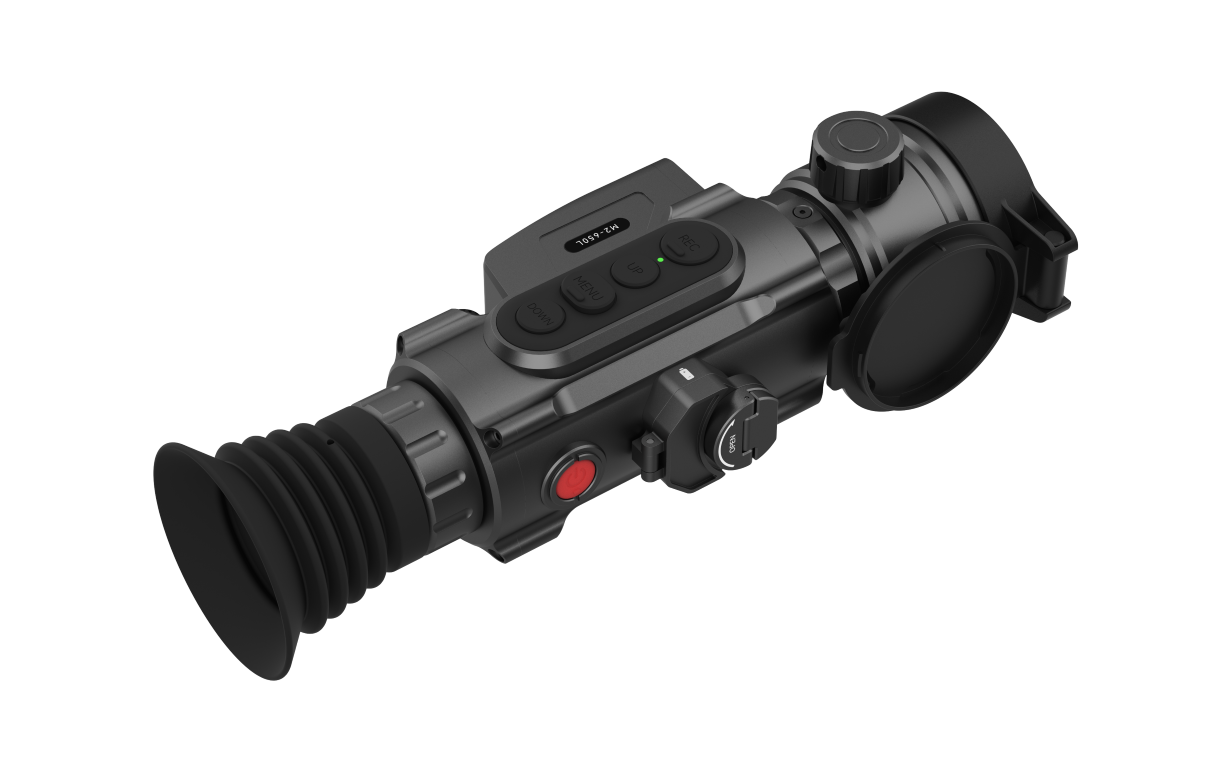

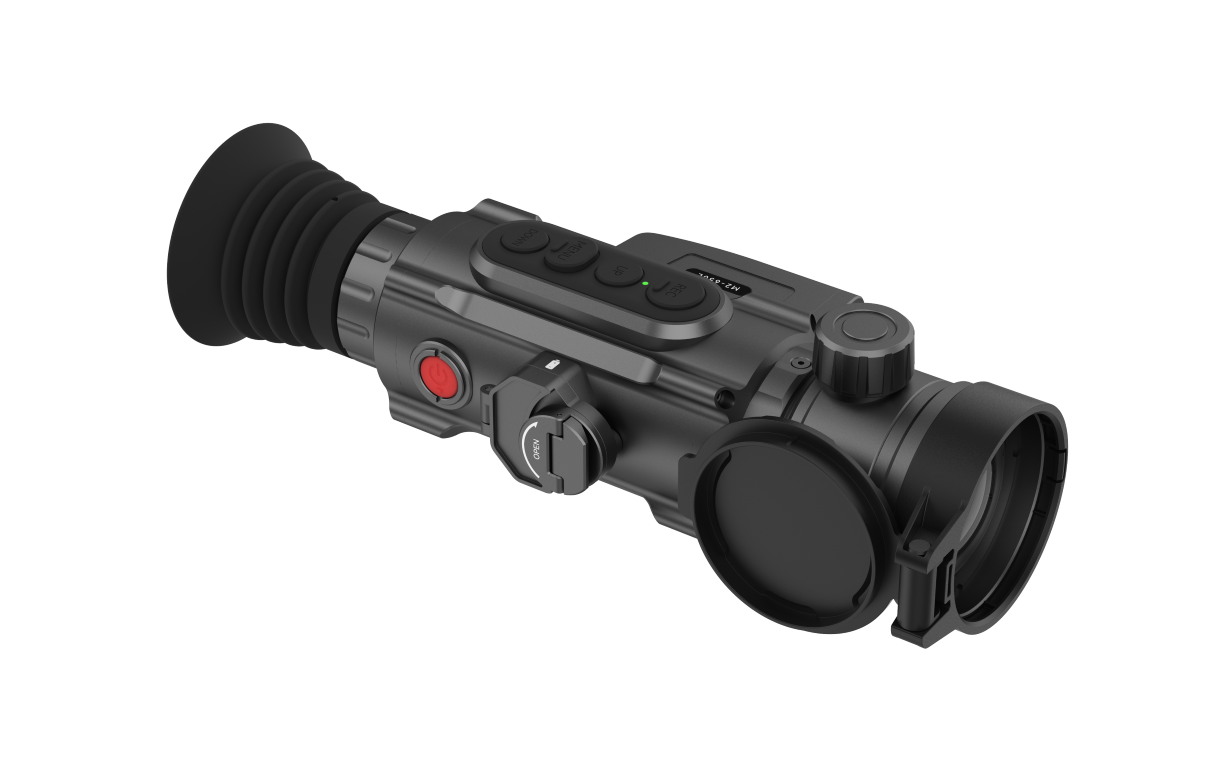

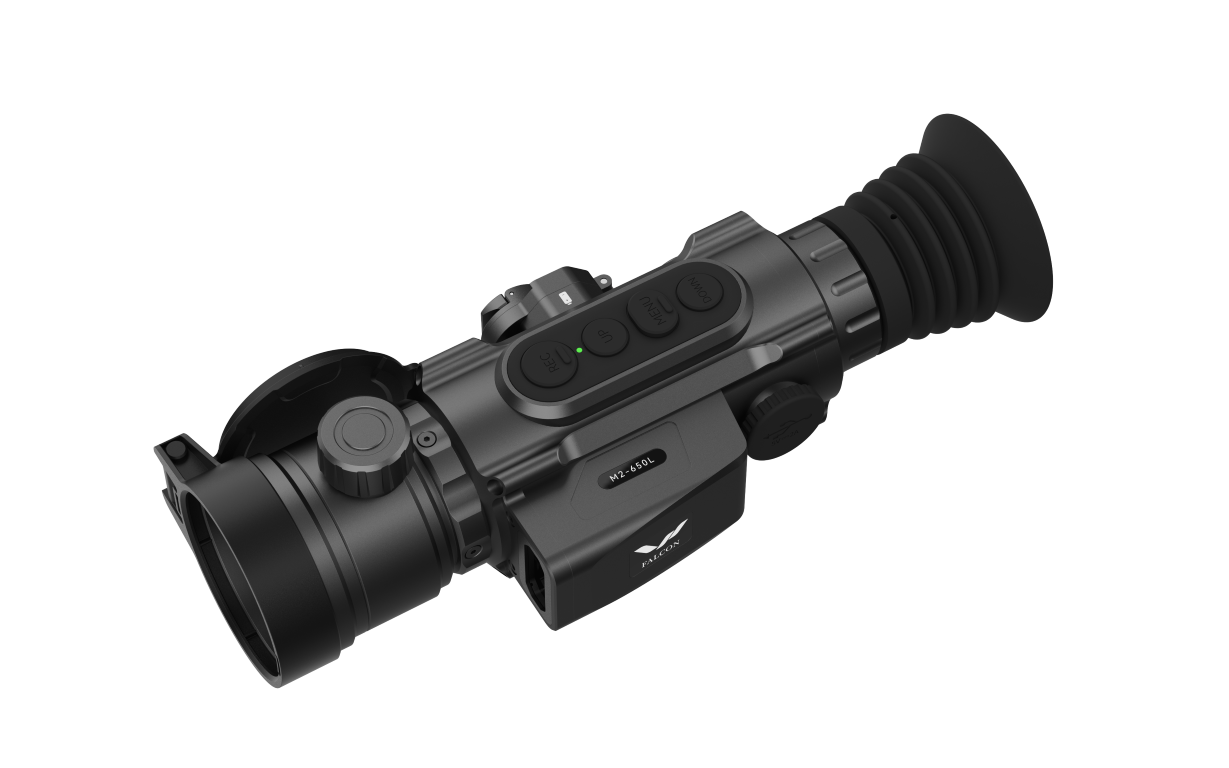

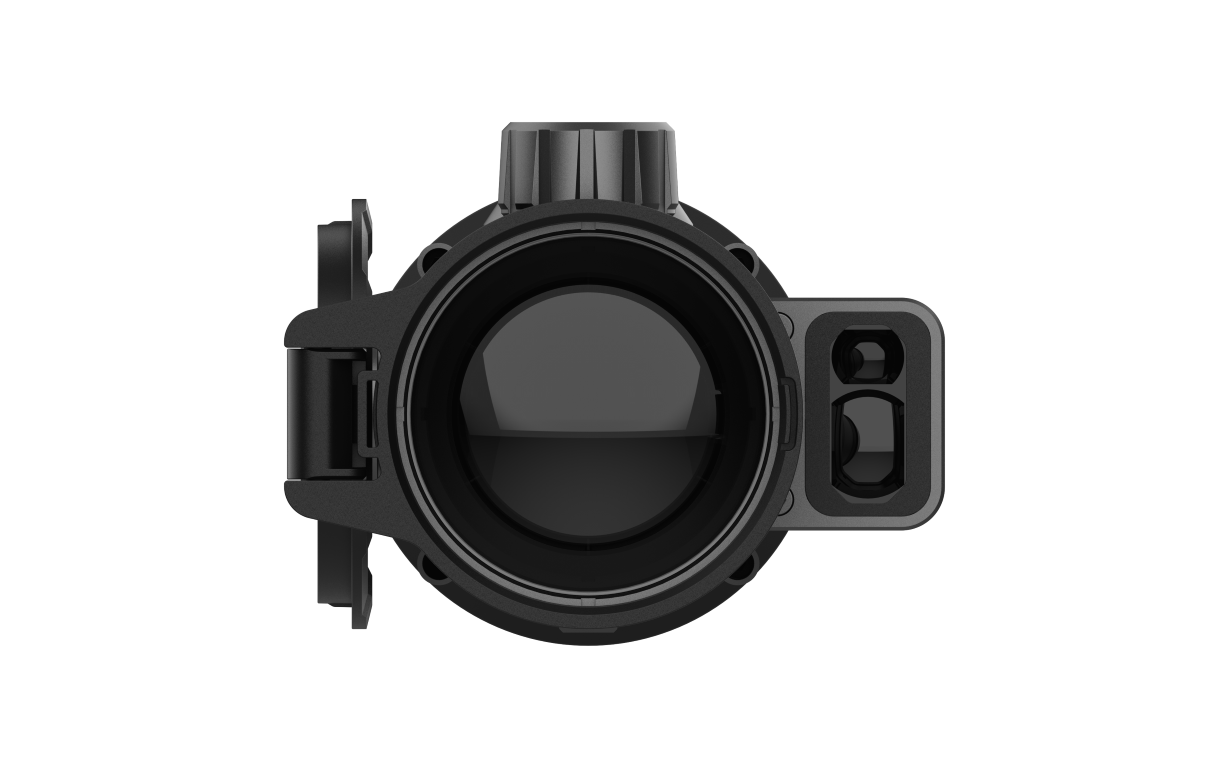

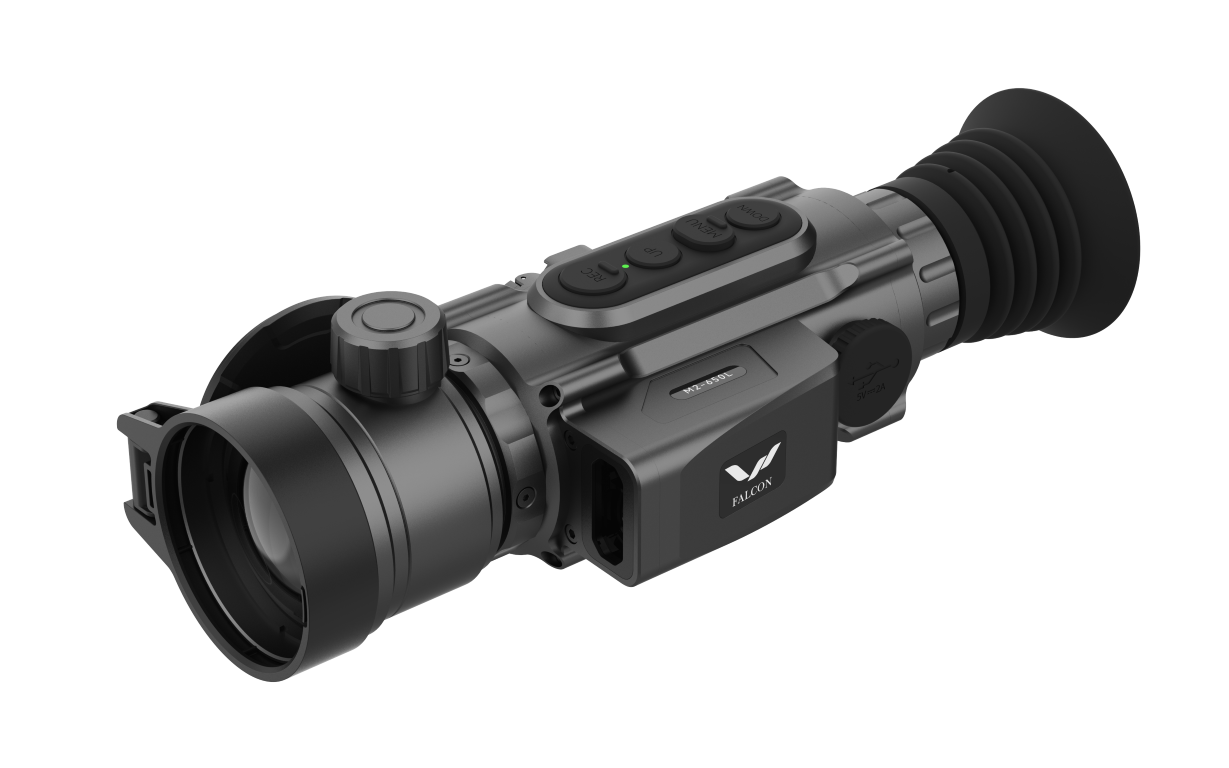

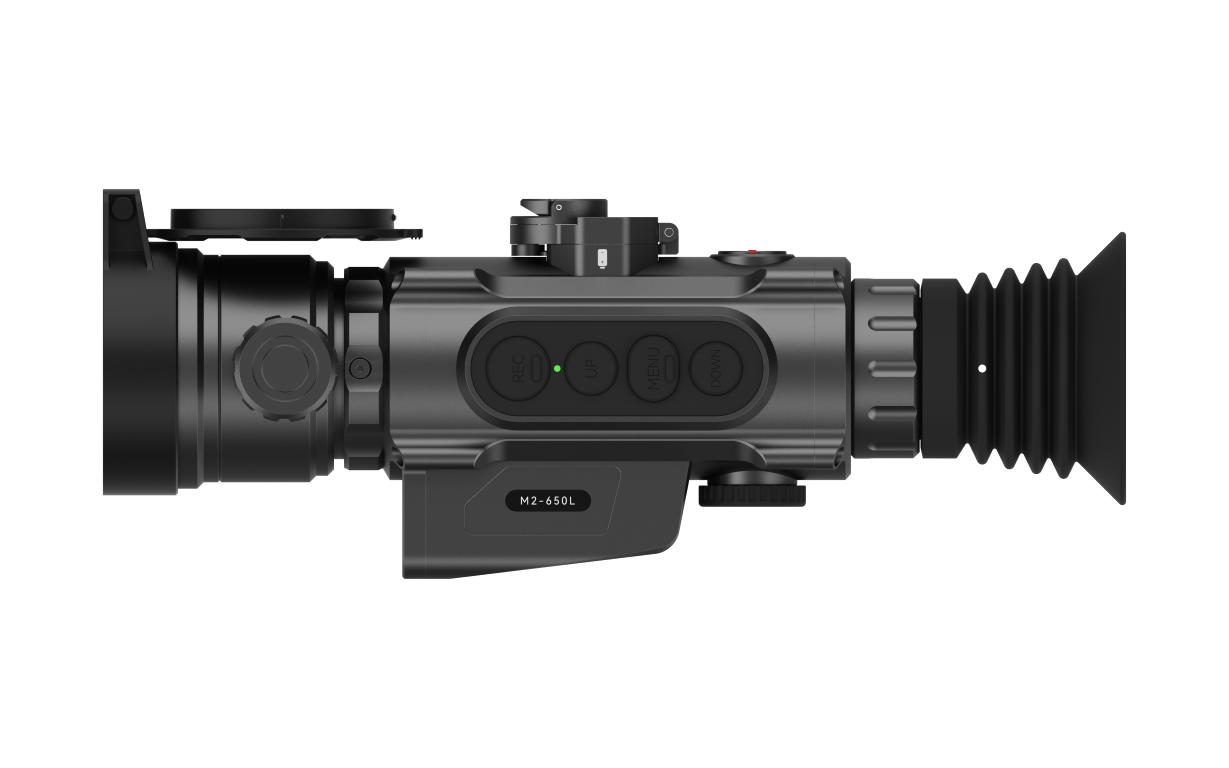

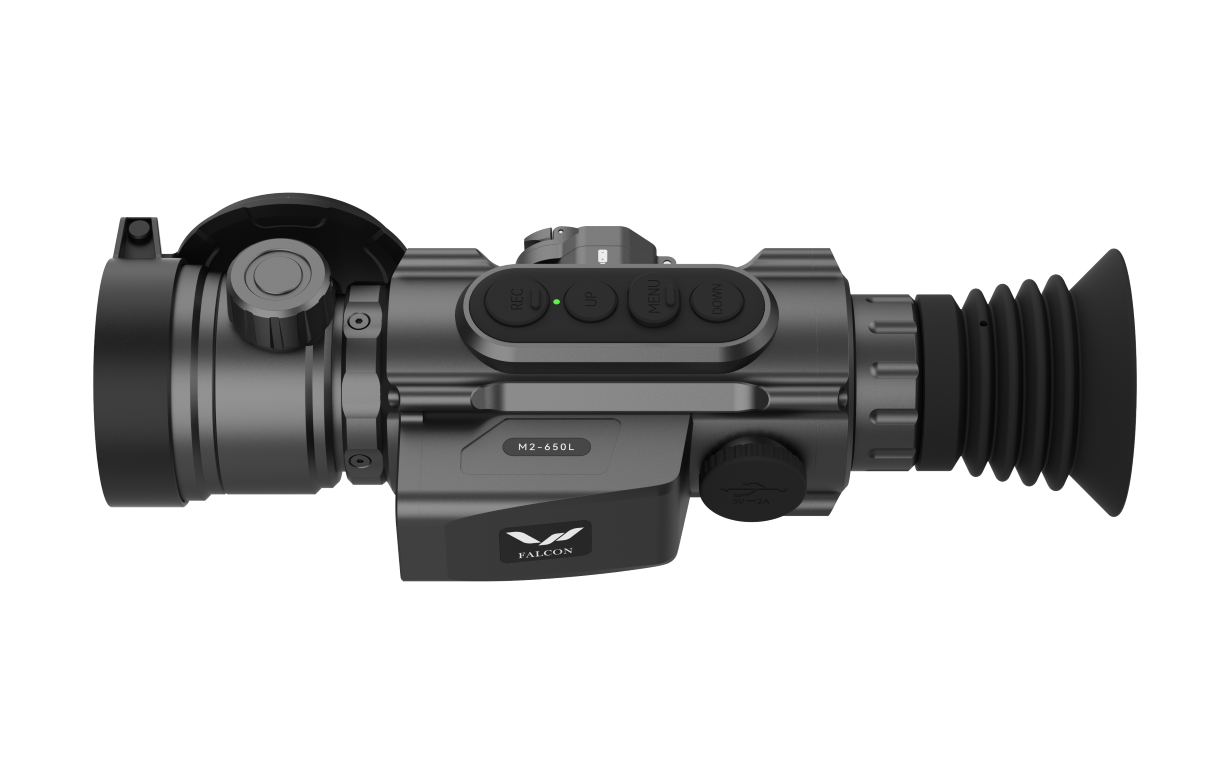

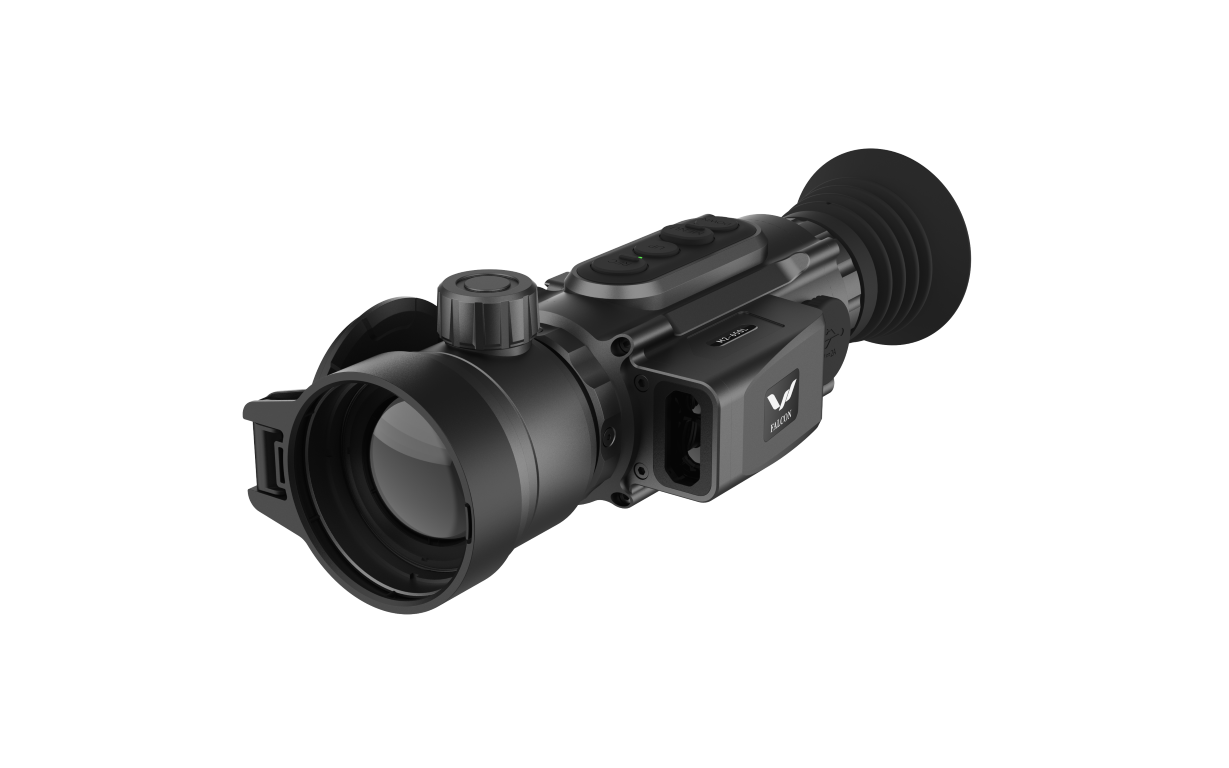

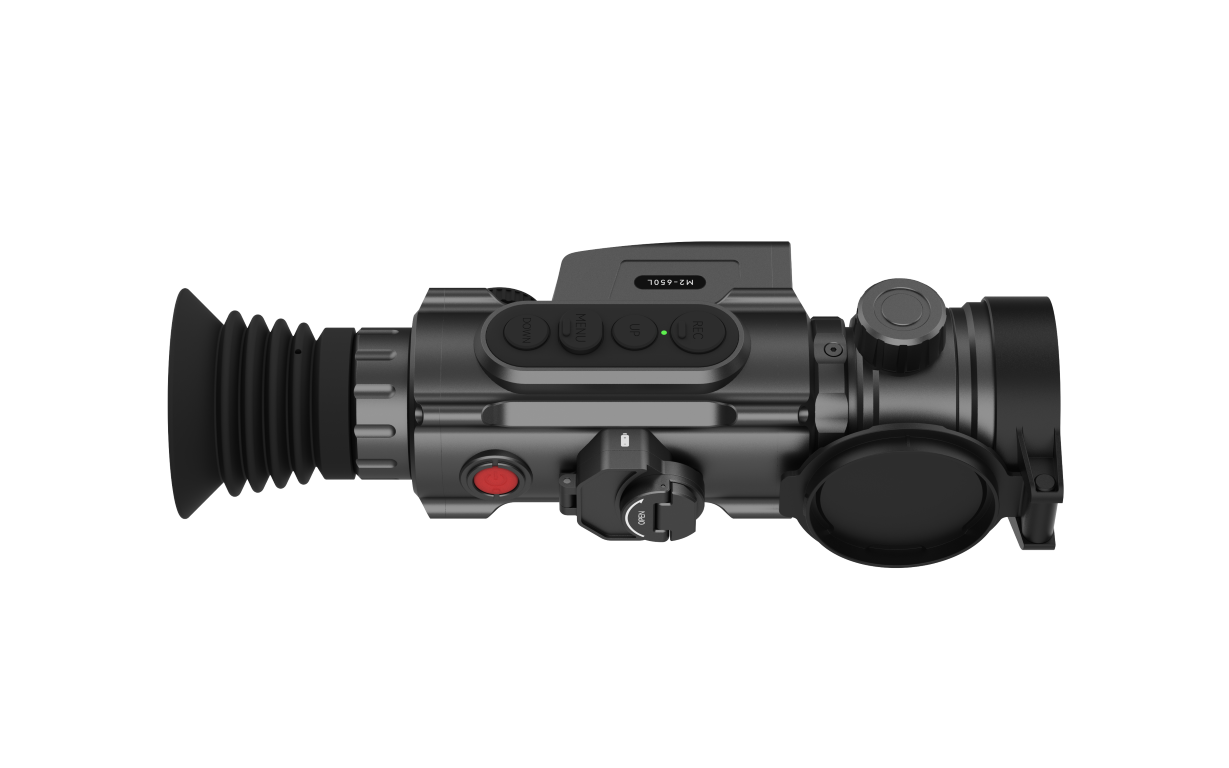

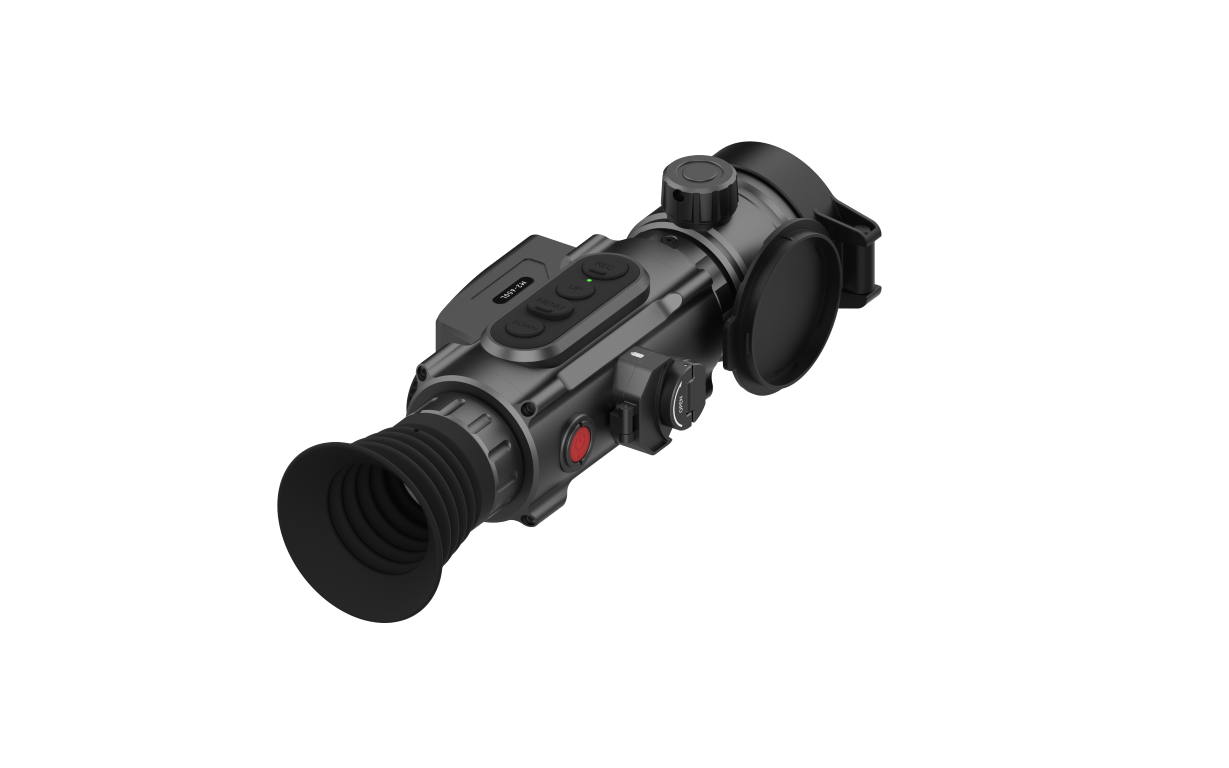

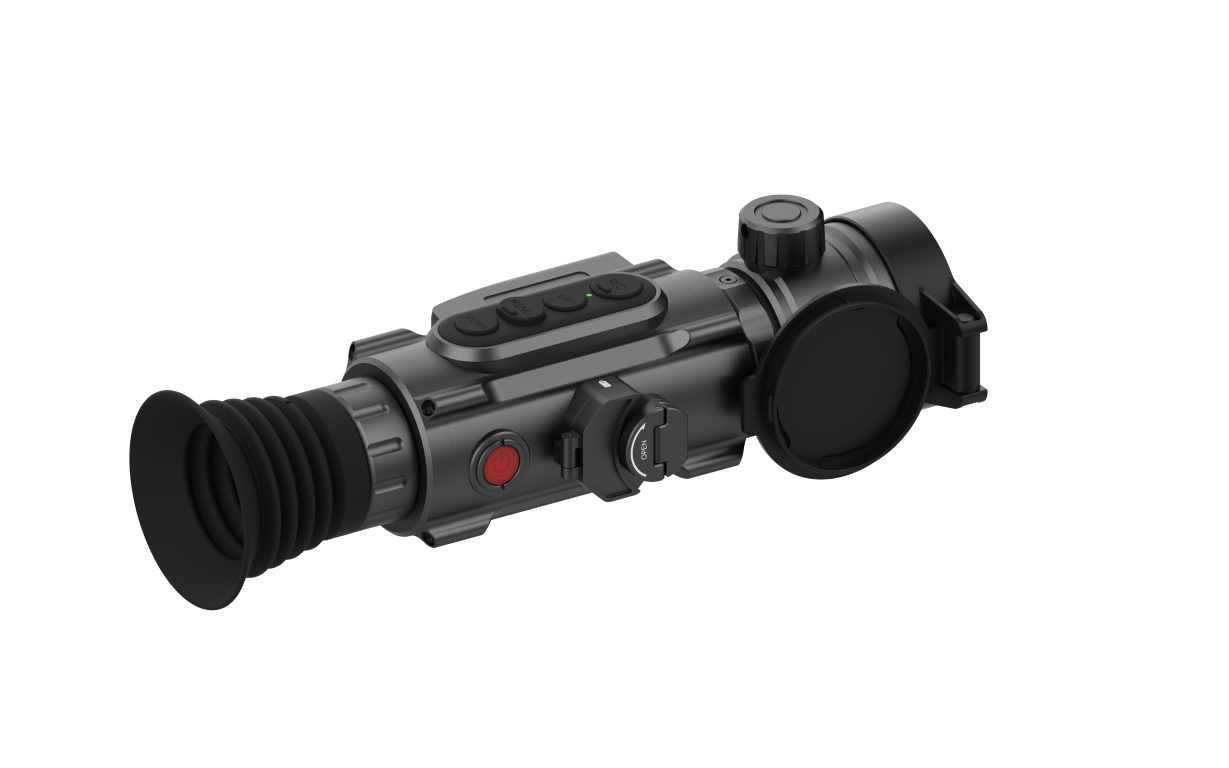

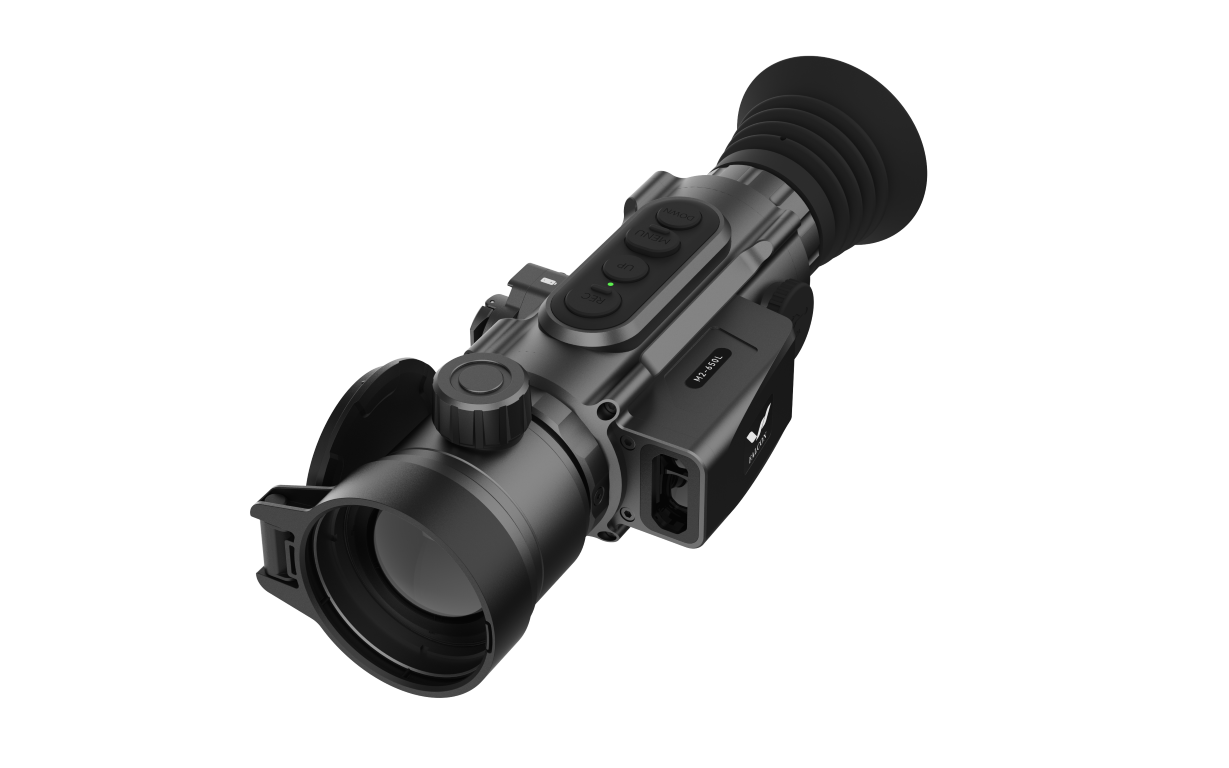

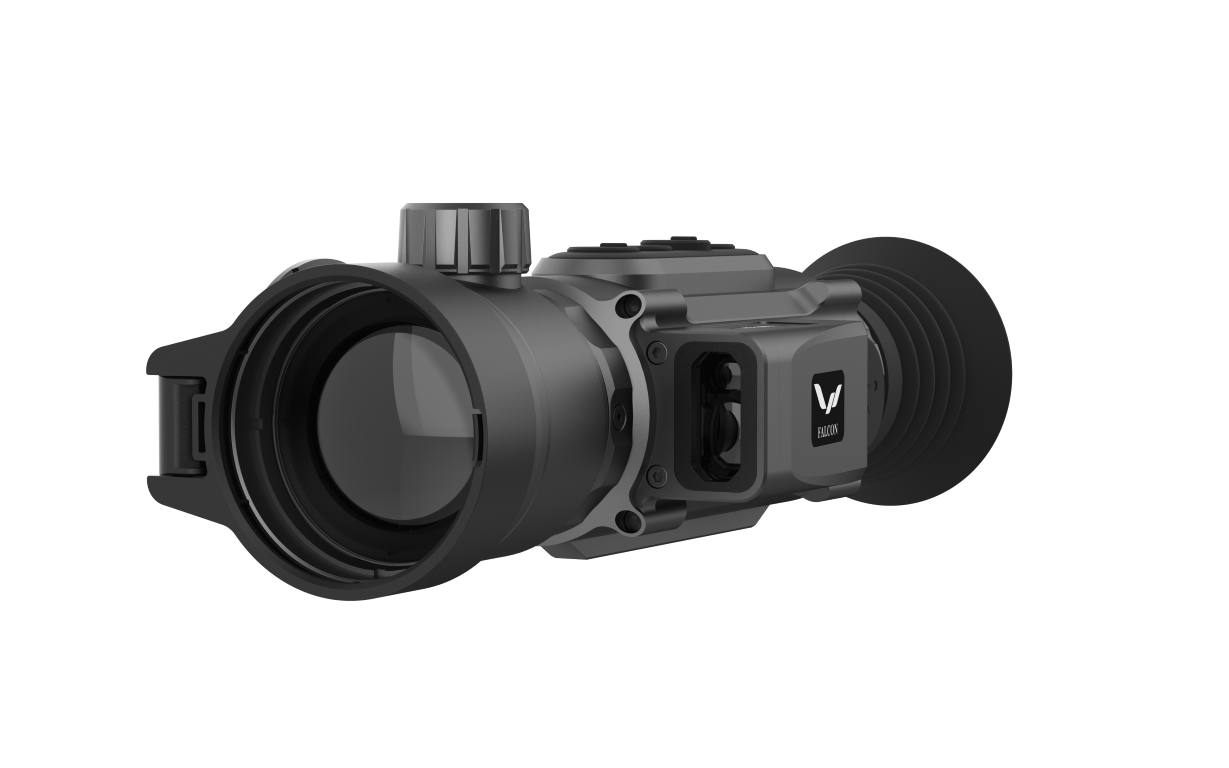

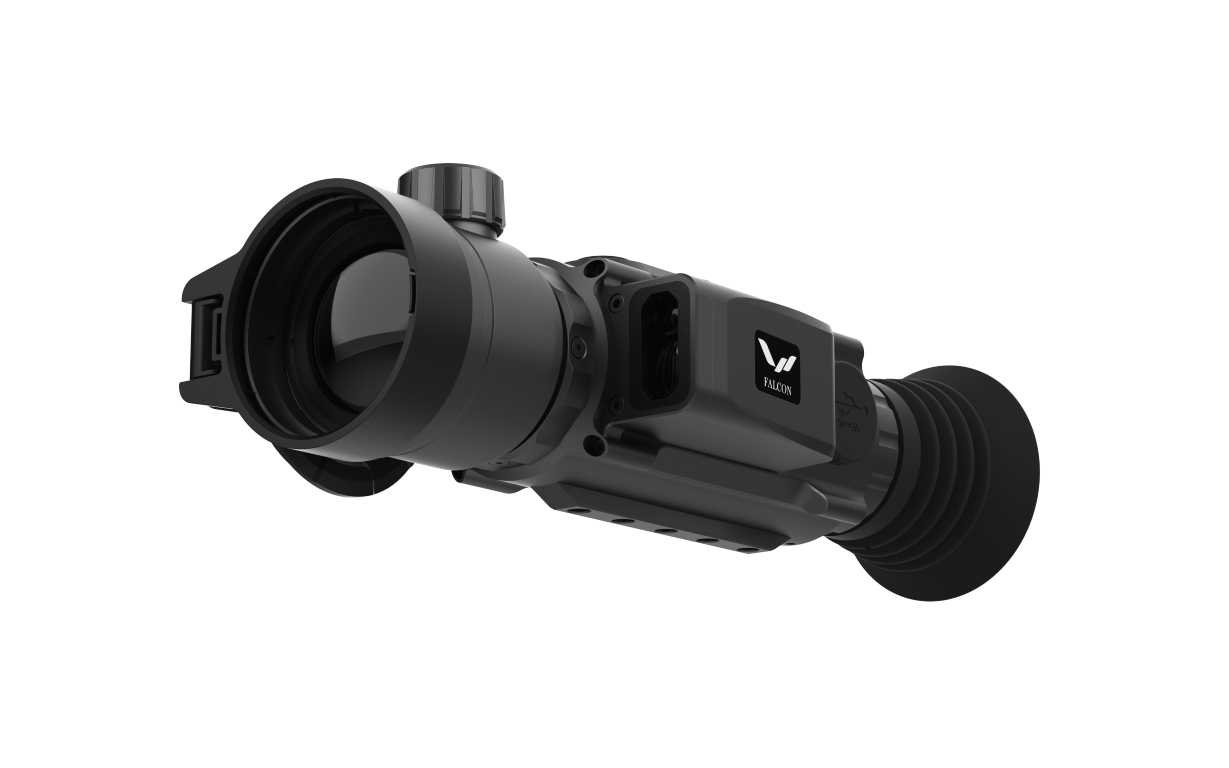

FALCON MEDUSA M2-650L

FALCON MEDUSA M2-650L represents modern thermal imaging technology designed for detecting temperature differences in demanding conditions and low-visibility environments.

The device features a 640 × 512 px sensor with NETD ≤ 18 mK sensitivity, enabling detailed imaging even with minimal temperature variations. The high-contrast OLED display delivers a clear and stable image during extended use.

An integrated laser rangefinder allows precise distance measurement up to 1000 m. Wi-Fi connectivity and compatibility with the XVision Pro application enable real-time image transmission, photo capture, and video recording for documentation or analytical purposes.

The IP67-certified housing ensures resistance against dust and water. Power supply via a 18650 battery enables efficient field operation even during prolonged use.

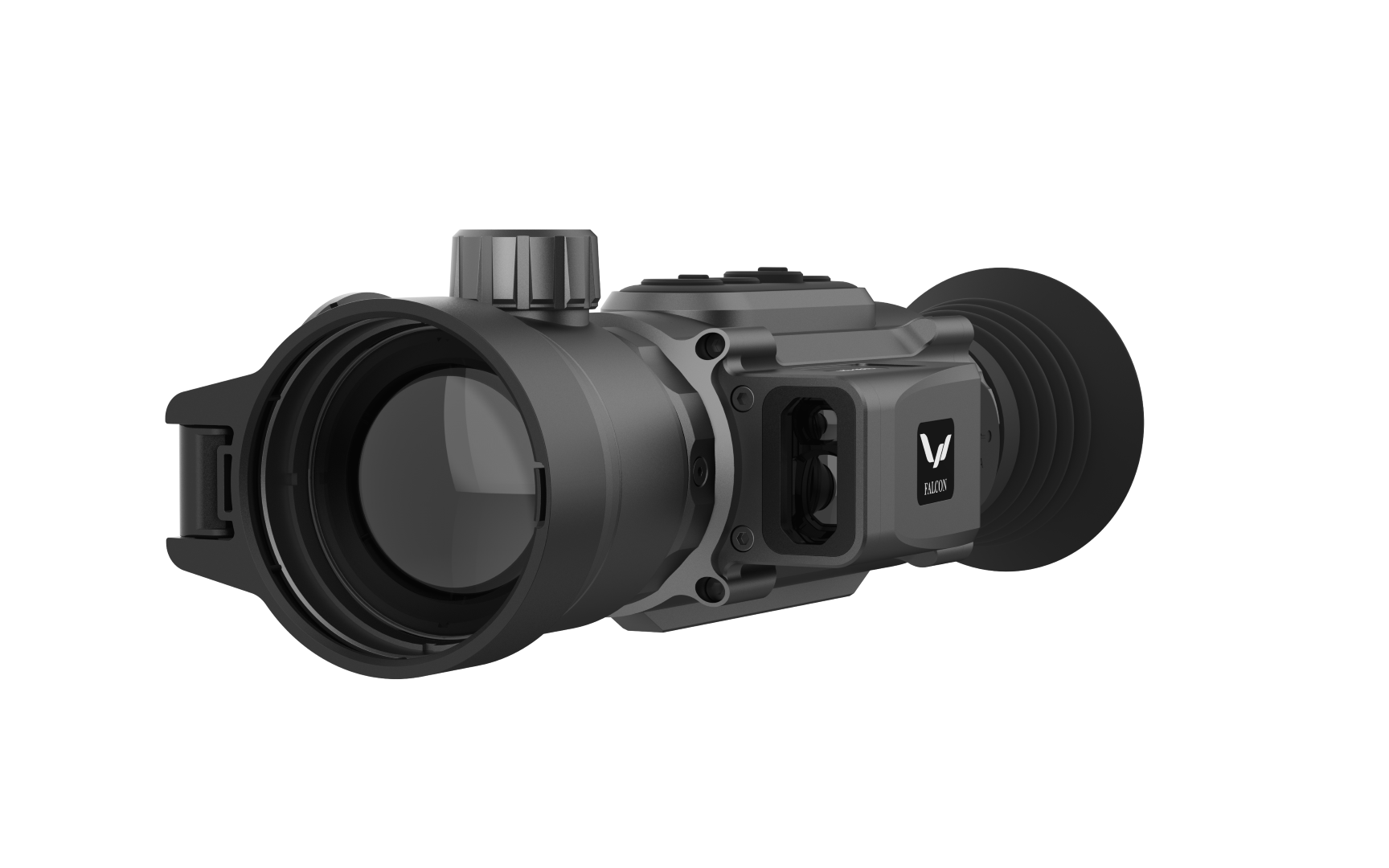

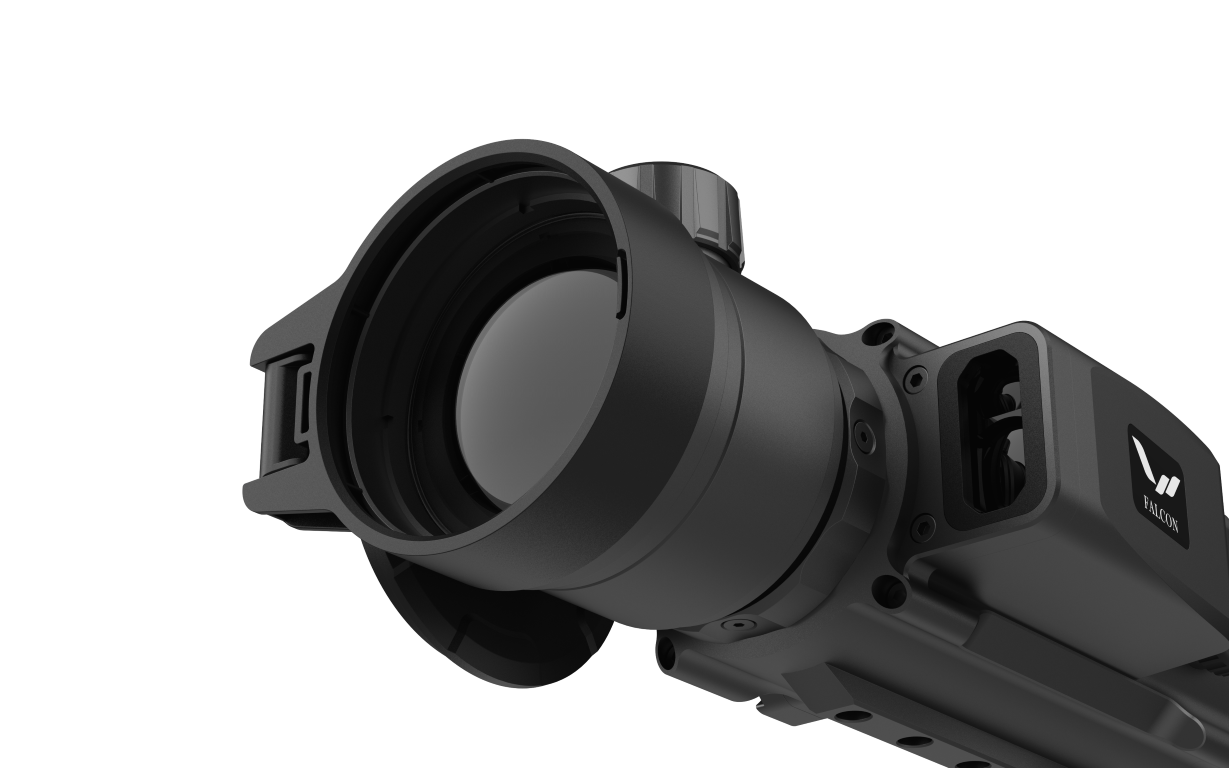

Precision Distance Measurement Technology

FALCON MEDUSA is equipped with an integrated laser rangefinder for accurate distance determination of the observed object up to 1200 meters. Through integration with the XVision Pro application, users can monitor live images, capture recordings, and take photos. The application is compatible with iOS and Android smartphones and tablets. The built-in 32 GB memory allows storage of videos and photos for further evaluation or archiving.

Key Advantages

● High-resolution imaging for detailed observation
● Integrated laser rangefinder up to 1200 m
● Durable IP67 construction for harsh environments
● Intuitive controls and XVision Pro mobile application
● Advanced ballistics algorithm
● Updated, higher-contrast firmware algorithms making it easier to visually isolate target silhouettes in harsh atmospheric conditions (like heavy rain or thick fog) near that 2,500-metre threshold.
● 32 GB internal memory for photo and video recording
● 3-year warranty and service support

Package contents:
FALCON MEDUSA M2-650L thermal device
1× rail mount
1x user manual
1× carrying case
2× 18650 battery
1× USB-C cable
1× 240V power adapter with USB output

Specifications
Warranty: 3 years
Sensor Resolution (pixel): 640 x 512 px
Sensor Pixel Size: 12 µm
Objective Lens (mm): 50mm
NETD: ≤ 18mK
Field-of-View: 8,8° x 7°
Display Type/Resolution: 1024 x 768 px
Optical Magnification (x): 2,8x
Digital Zoom (x): 1x, 1,5x, 2x, 2,5x, 3x, 4x, 6x, 8x
Laser Range Finder Range: 1000m
Detection Range: >2500m
Recoil Resistance (G}: 10,000 joules
Ballistic Calculator: Yes
Gyroscope: Yes
Colour Mode: White Hot, High Light, Black Hot, Low Light, Fusion, Red Hot
Reticle Design: 10
Reticle Colour: 5
Multiple Profiles: 10
Dioptr: Yes -5D/+5D
Picture in Picture: Yes
On-board video recording: Yes
Memory: Yes, internal 32GB
WIFI Equipped: Yes
Battery Type: Lithium Ion 18650 1x
Expected Battery Runtime: ≥ 5 hours
External Power Supply Capable: Yes, USB-C
Operating Temperature: -20°C ~ +50°C
Dimensions: 241 x 91 x 72mm
Weight (w/o Mount & Battery): 754.9 g
Waterproof Rating: IP67
