Description

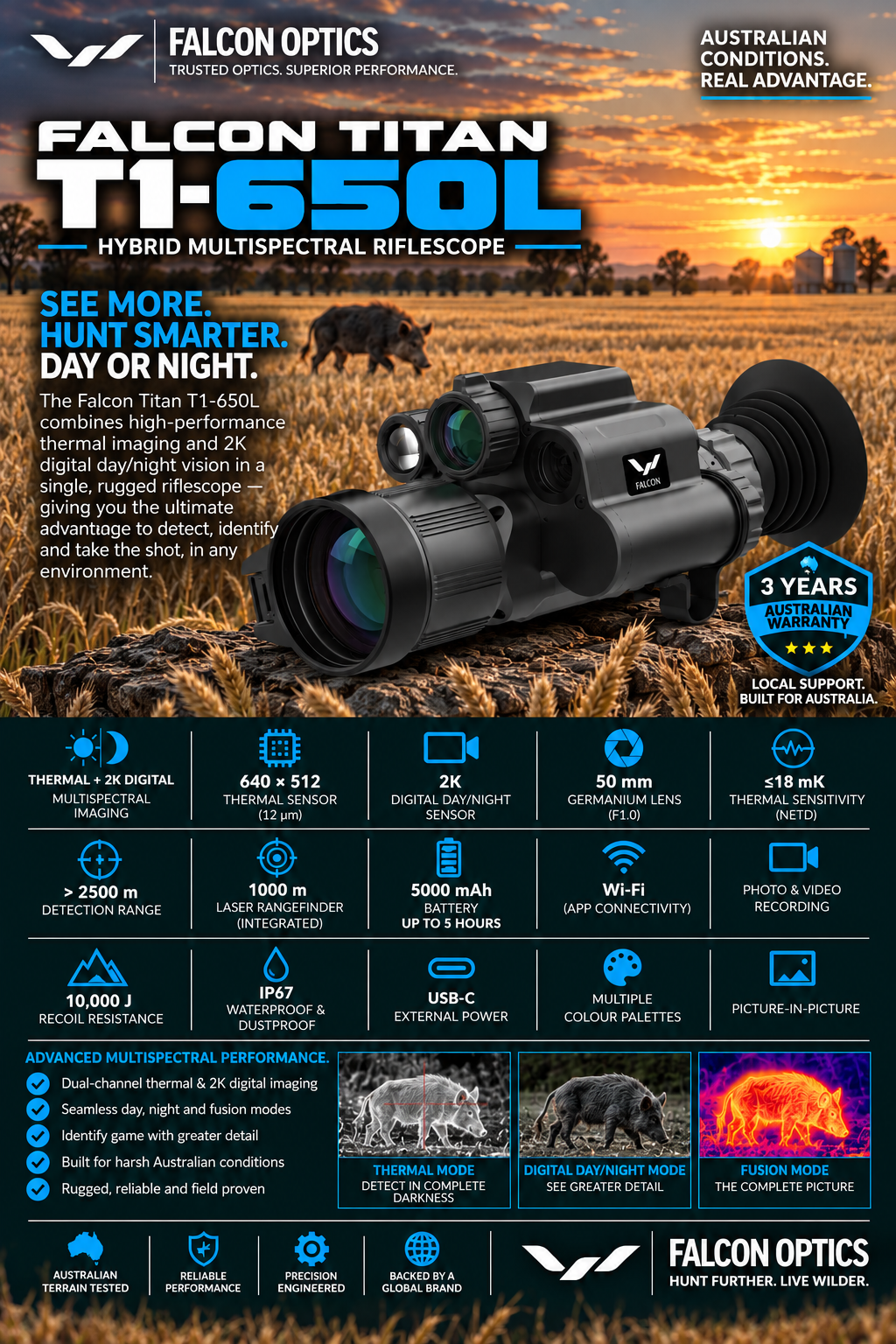

FALCON TITAN T1-650L

The FALCON TITAN T1-650L is a multispectral device combining thermal imaging and digital day/night vision in a single unit. The 640 × 512 px thermal sensor with a 50 mm lens enables fast detection of wildlife, while the digital 2K imaging channel with an 940 nm IR illuminator provides natural-looking images and detailed identification of the observed target. An integrated laser rangefinder (LRF) completes the system, enabling precise distance measurement.

A new-generation multispectral device combining the advantages of thermal imaging and digital day/night vision with an IR illuminator 940nm. Users can take advantage of two different imaging systems in a single device and select the most suitable observation mode according to current conditions.

Thermal Imaging for Fast Detection

The thermal imaging channel features a 640 × 512 px sensor with NETD ≤ 18 mK sensitivity, enabling rapid detection of heat-emitting objects regardless of ambient light levels.

Thermal imaging is ideal for initial wildlife detection in complete darkness, vegetation, or challenging observation conditions.

The OLED display provides a sharp, high-contrast image suitable for extended use.

The high-resolution sensor delivers a detailed thermal image and makes it easier to distinguish characteristic features of the observed object.

Digital Day and Night Vision

The second imaging system is a digital 2K imaging channel, enabling observation during both day and night.

In daylight, it provides an image with more natural environmental details. In complete darkness, the IR illuminator can be used to illuminate the scene with infrared light, allowing the digital sensor to display details that thermal imaging alone cannot provide.

The combination of both technologies therefore allows thermal imaging to be used for rapid detection and digital night vision for subsequent detailed identification.

Two Imaging Systems, One Device

The main advantage of the FALCON TITAN T1-650L is the ability to work with multiple sources of visual information without the need to carry two separate devices.

Thermal imaging helps quickly detect the presence of wildlife based on its heat signature, while the digital day/night channel makes it easier to distinguish the observed object itself and its surroundings.

Integrated Laser Rangefinder

The T1-650L is also equipped with an integrated laser rangefinder (LRF) for rapid distance measurement of the observed object directly while using the device.

Package Contents
FALCON TITAN T1-650L thermal device – 940nm
1x mount
1x user manual
1x protective case
1x 26650 battery 5000mA
1x USB-C cable
1x 240V USB charger

Specifications
Warranty: 3 years
Sensor Resolution (pixel): 640 x 512 px / 2048 x 1520 px
Sensor Pixel Size: 12 µm / 9 µm
Objective Lens (mm): 50mm / 50mm
NETD: ≤ 18mK
Field-of-View: 8,8° x 7,0° / 6,8° x 5,1°
Display Type/Resolution: 1024 x 768 px
Optical Magnification (x): 2,8x / 3,0x
Digital Zoom (x): 1x,2x,4x,8x / 3x,6x,9x,18x
Laser Range Finder Range: 1000m
Detection Range: >2500m
Recoil Resistance (G}: 10,000 joules
Ballistic Calculator: Yes
Gyroscope: Yes
Colour Mode: White Hot, High Light, Black Hot, Low Light, Fusion
Reticle Design: 10
Reticle Colour: 5
Multiple Profiles:10
Dioptr: Yes -5D/+5D
Picture in Picture: Yes
On-board video recording: Yes
Memory: Yes, internal 32GB
WIFI Equipped: Yes
Battery Type: Lithium Ion 26650 1x
Expected Battery Runtime: ≥ 5 hours
External Power Supply Capable: Yes, USB-C
Operating Temperature: -20°C ~ +50°C
Dimensions: 251 × 101 × 92mm
Weight (w/o Mount & Battery): 850 g
Waterproof Rating: IP67
App: Xvision Pro
